SPECIFICATIONS

Product Description

1.1 This product is a handheld wireless with a rated voltage of 11.1V

1.2 The product has three functions of vacuuming, blowing/inflating, and exhausting.

1.3 The filter adopts HEPA and is washable.

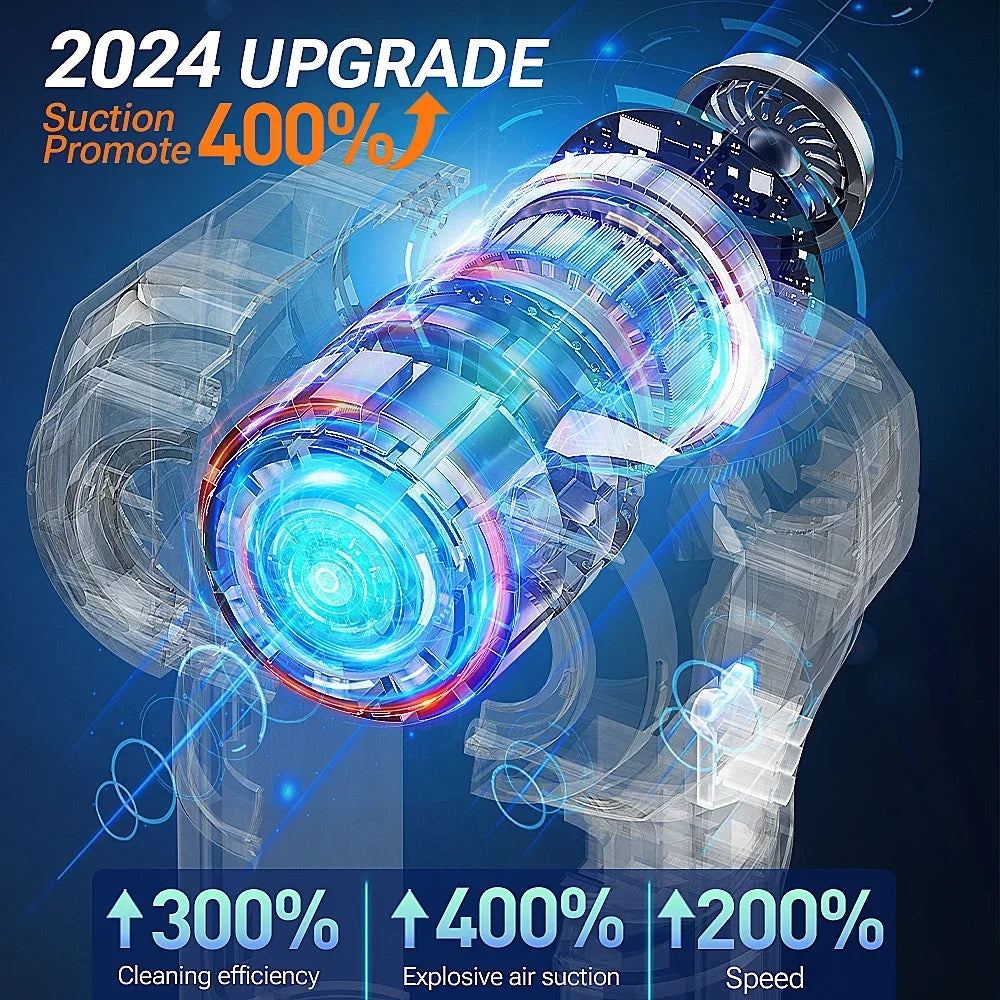

1.4 The motor is 11.1V high-speed brushless motor.

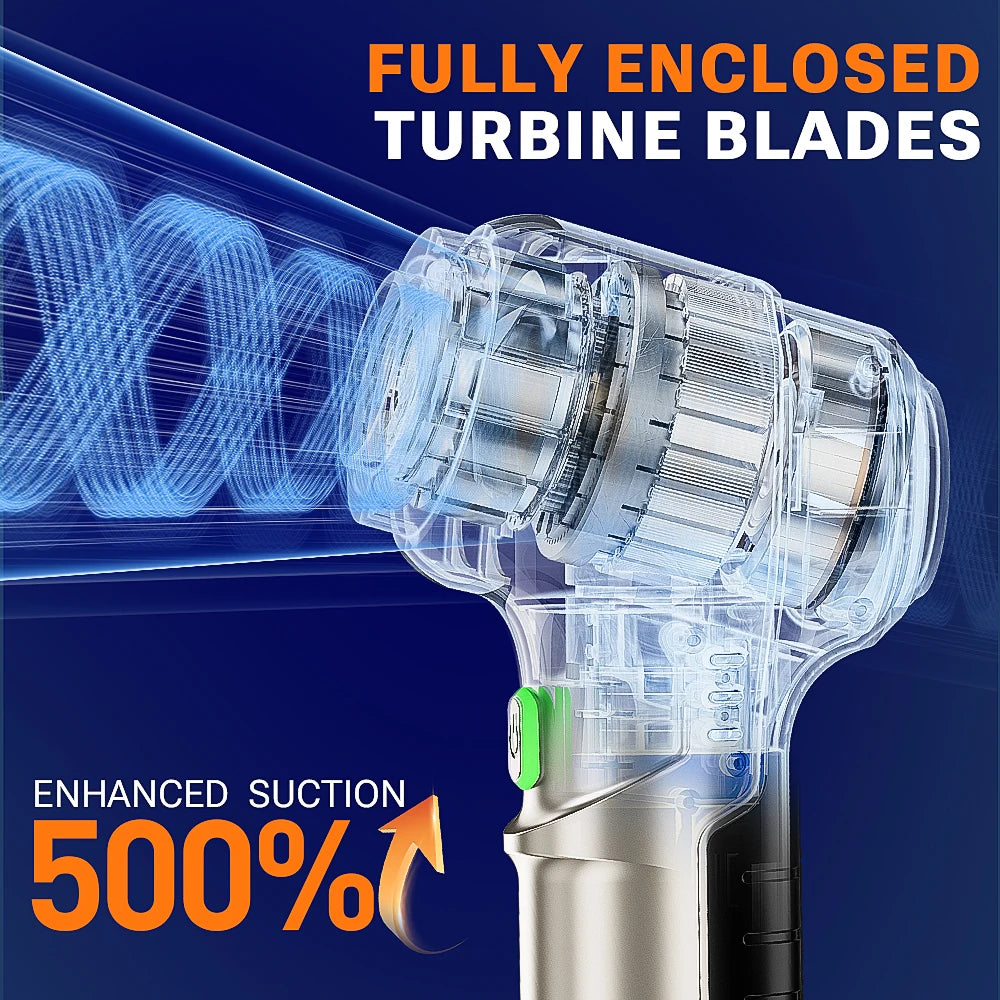

1.5 Fully enclosed turbine blades

1.6 Battery indicator

Specifications of key components (refer to BOM, relevant engineering specification paper, and parts inspection and assembly precautions for details)

2.1 Blades Fully enclosed turbine blades

2.2 Shell material ABS

2.3 Product size 21.8X20.5X6.4 (length x width x height cm)

2.4 Battery 18650*3*2000mAh 11.1V

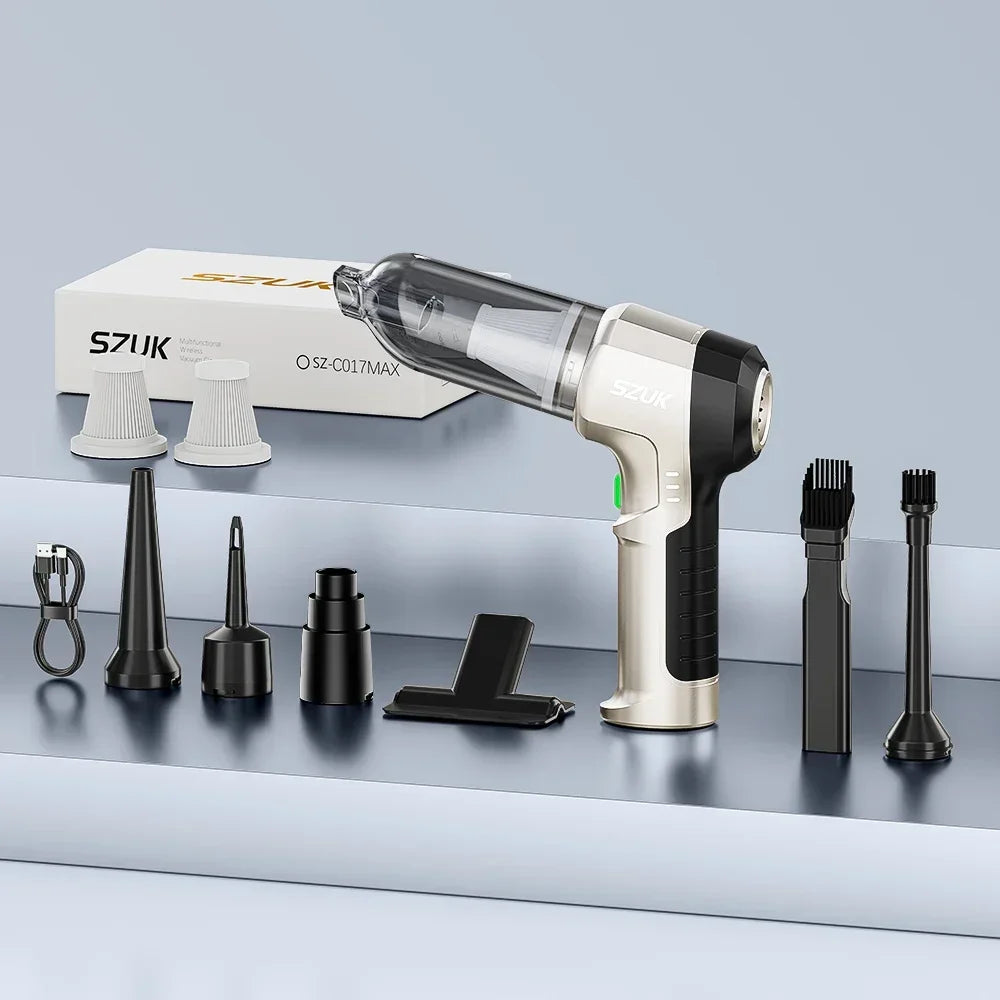

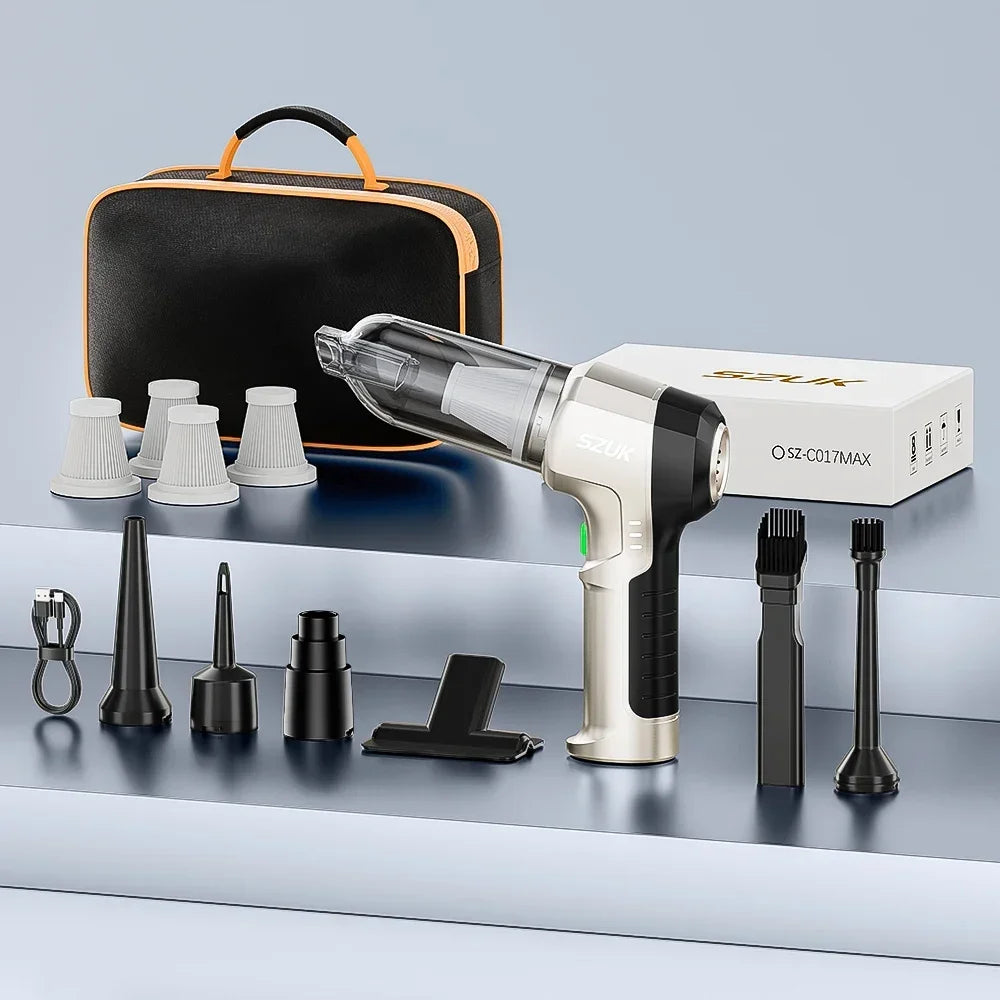

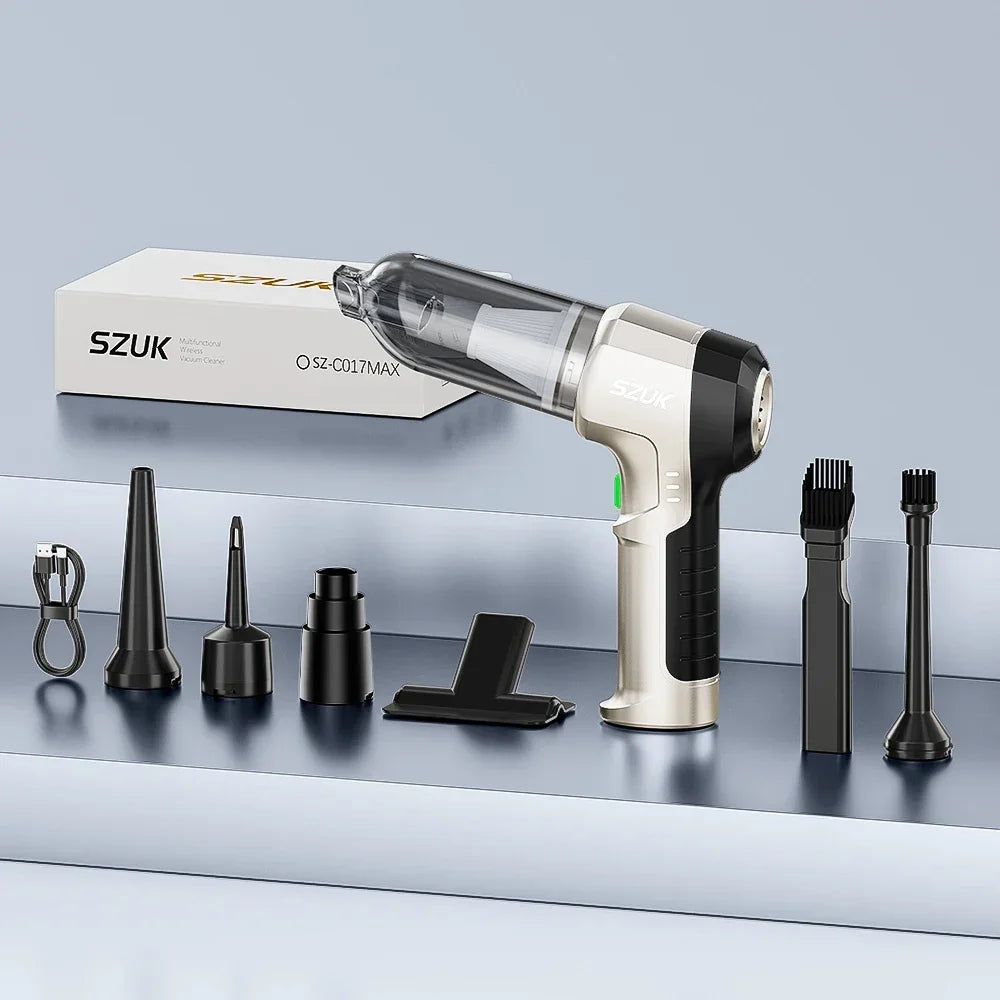

2.5 Accessories Brush, static brush, flat tube, long blowing rod, long rod brush, USB charging cable, (three inflatable accessories) (optional: HEPA, simple open cover dust cup, bag)

2.6 Weight 470g (bare machine)

2.7 Motor size 45 brushless motor 80000 rpm

2.8 Switch High, medium and low three gears (press for 3 seconds to turn on)

2.9 Charging cable Type-c 5V 1.5A

Product parameters and performance

3.1 Rated voltage: DC11.1V

3.2 Rated power: 100W

3.3 Dust cup capacity 0.2L

3.3 Noise: Noise value of about 70dB at a distance of 1m

3.4 Suction force High-end 15KPa Mid-range 12KPa Low-end 6KPa

3.5 Blowing volume 680L/min maximum

3.6 Suction volume 680L/min maximum

3.7 Inflation pressure 15KPa High-end

3.8 Exhaust pressure 15KPa High-end

3.9 Charging time 4-5 hours

4.0 Use time Low-end vacuuming 30 minutes Mid-range vacuuming 18 minutes High-end vacuuming 12 minutes
